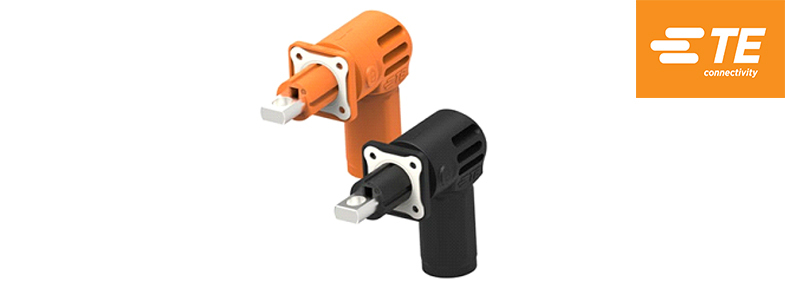

HPC 350A BESS Connector for Safe High-Current Applications
With the HPC 350A BESS Connector, TE Connectivity is expanding its portfolio for Battery Energy Storage Systems (BESS) with a high-performance and reliable connection solution. The single-pole high-current connector is rated for 1500 V and 350 A and addresses the growing demands for safety and efficiency in energy storage applications.
Focus on Reliability and Safety
The HPC 350A offers excellent control over temperature rise. Optional integrated temperature sensors enable 24/7 monitoring of the system and support intelligent safety management. The IP67 protection rating also ensures reliable outdoor use.
Flexible installation and easy handling
The well-thought-out design with 180° inline locking allows for 360° rotation and ensures quick and easy installation, even for large quantities on-site. The Quick-Lock system with push-to-release function significantly simplifies maintenance and disassembly in the field. Different coding and color options (orange, black) prevent incorrect connections and increase operational safety.
Technical Specifications at a Glance
- Rated voltage: 1500 V
- Rated current: 350 A
- Protection rating: IP67
- Materials: PA66, copper
- Standards: UL 4128, IEC 61984, TÜV PPP 51090B:2023
Typical Applications
The HPC 350A connector was specifically designed for BESS applications and is ideal for modern energy storage systems with high power requirements.
Further Information
Additional details, data sheets, and product resources are available on the internal pages:
HPC 350 A BESS connector English flyer
HPC 350 A BESS connector part list
If you have any further questions about the product, our office and field staff will be happy to assist you and provide you with a personalized quote.
