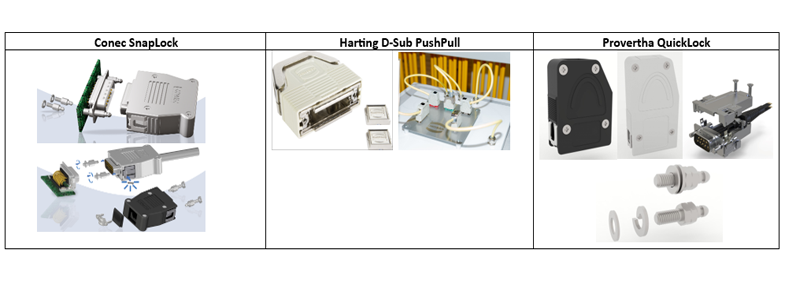

D-Sub quick-locking systems enable fast, tool-free, and secure connection. They simplify installation and facilitate handling in daily use, even in hard-to-see areas. An integrated spring clip in the cover locks into place with a bolt on the mating connector, preventing accidental disconnection. To release, the release mechanism is activated and the housing is pulled back, causing the springs to open. Existing D-Sub connector systems can be retrofitted with bolts. As a partner to renowned manufacturers of D-Sub quick-locking systems, Börsig offers a wide range of products.
Together, we will find the right solution for you. Here is an overview of our manufacturers:
CONEC SnapLock
SnapLock Hoods
Housing sizes 1-5 / black or metallized plastic housing
- Depending on size, with one straight cable entry + one or two side cable entries
SnapLock Hood Bundles
- Includes matching screw-in bolt kit
- 9–50 pins / black or metallized plastic housing
SnapLock D-SUB connectors
- 9-50 pins
- Captive bolt
SnapLock retrofit sets
- 9 or 15 pins / metallized plastic housing
- Lengths: 1.8 m, 3 m, or 5 m (others available on request) / connecting cable (pin + socket) or connection cable (pin)
SnapLock accessories
- Screw-in bolt kit for retrofitting for rear panel mounting (4-40 UNC)
- Locking kit for hood to hood
HARTING D-Sub PushPull
SnapLock Housings
- Housing sizes 1-5 / black or metallized plastic housing
- Depending on size, with one straight cable entry + one or two side cable entries
HARTING D-Sub PushPull
HARTING D-Sub PushPull enclosures
Various designs:
- Plastic enclosure, enclosure material PC GF 20
- Metallized enclosure, nickel-plated ABS
Sizes:
- 09-pin (size 1)
- 15-pin (size 2)
- 25-pin (size 3)
- Internal cable clamp 3 mm - 7.5 mm
- External cable clamp 5 mm - 12 mm
- Coding system (second slot for fixing the coding frame)
- 2 (9-pin) or 3 cable entries, up to a cable diameter of 14 mm
- Cable clamp (optional) in three sizes, for cable diameters 5 - 7 mm / 7 - 10 mm / 9 - 12 mm
- Wide temperature range (-35 °C to +100 °C)
- PushPull can be retrofitted into existing D-Sub systems
- Compatible with other manufacturers
https://www.harting.com/en-DE/d-sub-pushpull-manual
https://www.harting.com/en-DE/d-sub-pushpull
PROVERTHA QuickLock
QuickLock hoods
- 9-50 poles
- Plastic hoods: Long version (58.2 mm installation length) or short version (44.2 mm installation length) with PushPull quick-release fastener
- Full metal hoods (44.2 mm or 42 mm installation length)
- 2-3 cable entries
QuickLock locking pins – easy retrofitting of the PushPull quick-locking mechanism in existing D-Sub systems (e.g. with screw locking)
Mounting kit for:
- D-Sub interface with threaded bolts
- D-Sub interface with thread on the connection side
- D-Sub interface with through hole
- Plastic covers 07xxB/007xxM
- Cover-cover through housing wall
- Cover-cover connection
FlexLock covers with QuickLock locking mechanism
- 9, 15, or 25 pins
- FlexLock: Same design - different locking types - identical external dimensions
FlexLock - PROVERTHA Connectors, Cables & Solutions GmbH
If you have any further questions about the products, your contact persons from the office and field sales teams will be happy to assist you and provide you with a personalized quote.
