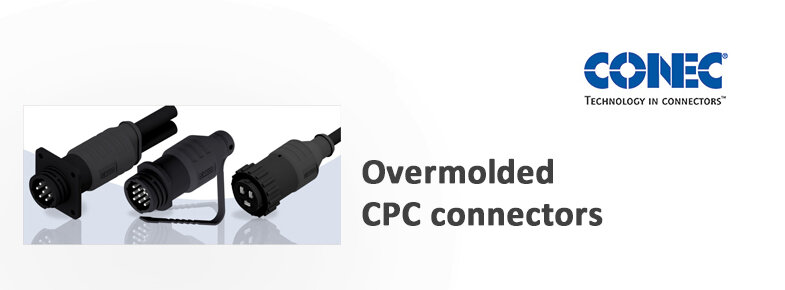

CONEC: Overmolded CPC connectors

CONEC Elektronische Bauelemente GmbH

The reliable CPC connector series, proven in many industries, is now also available from CONEC in overmolded versions in the 13-7, 13-9 and 17-3 designs specifically for agricultural  and automotive engineering. Areas in which robust and sealed connectors are traditionally required. The CPC connectors, which all have a quick-locking mechanism with threaded support and positive latching, have significantly smaller dimensions than an Isobus connector, for example. In addition, special counterparts have been added as termination caps, which have a locking loop as standard, which can be attached to the cable of the connector to be protected and thus cannot be lost. Alternatively, a steel cable can be used for fastening. When mated (mating part or cap), the overmolded connectors reliably meet the IP67 degree of protection. Versions with single and double wires for Y-distributors are available. Optionally, the standard open cable ends can be fitted with further connectors (e.g. DT, Superseal) on request. Also optional are wired end caps for bus termination.

Your advantages at a glance:

  • Compact design with IP67 protection class (plugged in or with protective cap)
  • Connection of two lines to one connector for Y-distribution possible
  • Use in harsh environmental conditions
  • Continuous protection of the housing and the cables

Examples of applications include agricultural and construction machinery, emergency vehicles, road construction machinery, and the transportation industry. They are also used in control, regulation or robotics technology as well as in power supply and injection molding and machine tools.
